High Torque 5800RPM Round Brushless Motor 57mm Sensorless Bldc Motor

Product Categories
Shenzhen Secore Technology Co.,Ltd
Contact Now

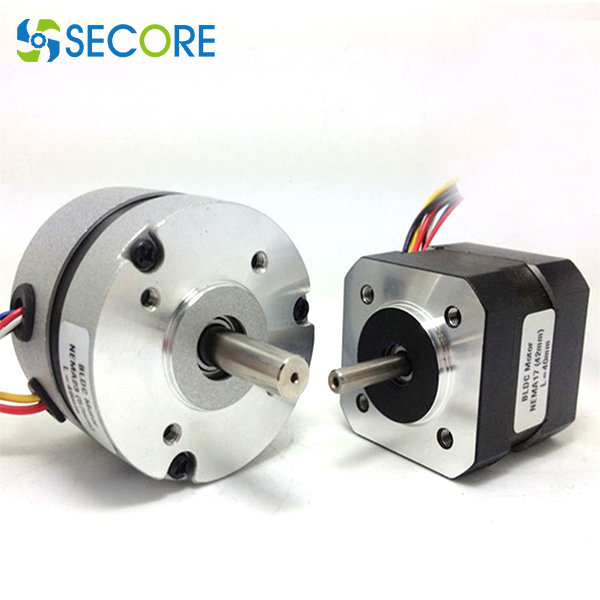

High Torque 5800RPM Round Brushless Motor 57mm Sensorless Bldc Motor

  • 1
  • 2
  • 3

Brand Name : SECORE

Model Number : SC-57S05

Certification : CE ROHS

Place of Origin : CHINA

MOQ : 100

Price : Negotiated The Price

Payment Terms : T/T, D/A

Supply Ability : 6000pcs per month

Delivery Time : 7-10 working days

Packaging Details : 20PC per carton or as request

MOQ : 100PCS

Nominal Voltage : 36V

free load Speed RPM : 5800RPM ±10%

free load current : 0.8A Max

Rated speed : 4000rpm±10%

Rated torque : 0.055N.m

Peak current : 3.5A

Peak torque : 0.16N.m

Torque constant : 0.053 N.m/A

motor length : 45mm

Contact Now

Round High Torque 57mm Brushless Motor Nema 23 Sensorless Bldc Motor

SPECS / Continuous rating for 57mm 23W brushless motor

Model number 57BL01 57BL02 57BL03 57BL04 57BL05
Number of Poles 4
Number of Phase 3
rated voltage VDC 36
rated power W 46 92 133 180 23
Rated speed RPM 4000 4000 4000 4000 4000
Rated torque N.m 0.11 0.22 0.32 0.43 0.055
Peak current A 6.8 11.5 16.5 20.5 3.5
Peak torque N.m 0.39 0.7 1 1.27 0.16
Resistance Ohms 1.5 0.7 0.45 0.35 4.1
Inductance mH 4.2 2.16 1.4 1 10
Torque constant Nm/A 0.063 0.063 0.063 0.063 0.053
Back EMF constant V/RPM 6.6 6.6 6.6 6.6 5.54
Rotor inertia g.cm² 75 119 173 230 30
motor length mm 55 75 95 118 45
weight kg 0.5 0.75 1 1.25 0.25

High Torque 5800RPM Round Brushless Motor 57mm Sensorless Bldc Motor

High Torque 5800RPM Round Brushless Motor 57mm Sensorless Bldc Motor

High Torque 5800RPM Round Brushless Motor 57mm Sensorless Bldc Motor

The working principle of DC brushless motor

The brushless DC motor power system is composed of three parts: rotor, stator and position sensor. The position sensor commutation of the stator winding current in a certain order according to the change of the rotor position (that is, it detects the position of the rotor pole relative to the stator winding, and generates a position sensing signal at a certain position, which is processed by the signal conversion circuit To control the power switch circuit, switch the winding current according to a certain logical relationship). The working voltage of the stator winding is provided by an electronic switch circuit controlled by the output of the position sensor. There are three types of position sensors: magnetic sensitive, photoelectric and electromagnetic

The DC brushless motor adopts magnetic-sensitive position sensor, and its magnetic-sensitive sensor components (such as Hall element, magneto-sensitive diode, magneto-sensitive pole tube, magneto-sensitive resistor or application-specific integrated circuit, etc.) are installed on the stator assembly. To detect the change of the magnetic field generated when the permanent magnet and the rotor rotate.
